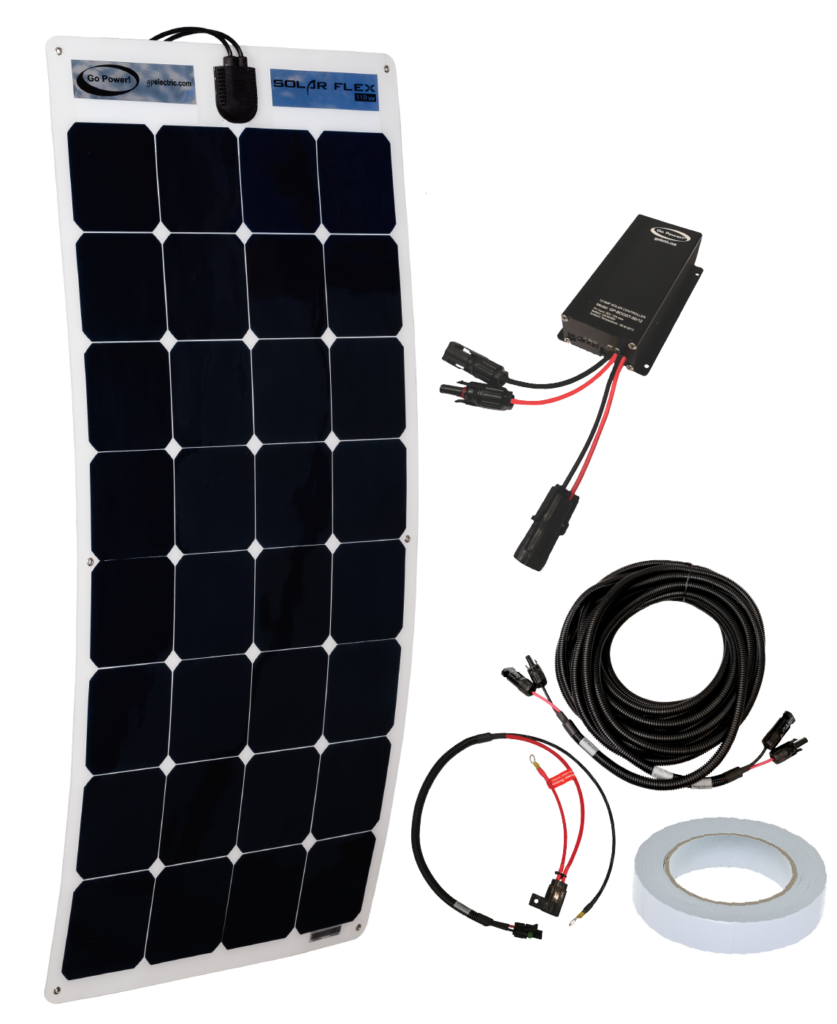

55 Watt Boost Solar Kit

Solar FlexTM solar panels are designed to provide a powerful charging solution for batteries. Unlike other ‘thin’ products, Solar FlexTM uses high-efficiency monocrystalline cells that produce more power per square foot than any other flat panel on the market. Built to withstand the harshest conditions.

55 Watt Boost Solar Kit

Solar FlexTM solar panels are designed to provide a powerful charging solution for batteries. Unlike other ‘thin’ products, Solar FlexTM uses high-efficiency monocrystalline cells that produce more power per square foot than any other flat panel on the market. Built to withstand the harshest conditions.

MODEL: GP-FLEX-55

Features

  • High-efficiency, back-contact solar cells
  •  Penetrating or adhesive mounting option
  •  Curves up to 30 degrees
  •  The durable surface is less than 1/8 in (3 mm) thick
  •  Industry-standard quick-connect cables (MC4) work in series or in parallel
  • Marine-grade material
  • Up to 82% lighter than other solar modules
  • Solar output power limited warranty of 5 years


CPV Kits include:

  • Harness(36″)
  • Harness(20″)
  • Perimeter Sealant Tape
  • GP Boost 50/12 Charge Controller


Panel Specifications

Cell Type Monocrystalline
Rated Power (Pm) 55W
Maximum Power (Vmp) 17.6V
Maximum Power Current (Imp) 2.88A
Open Circuit Voltage (Voc) 19.0V
Short Circuit Current (Isc) 3.04A
Maximum System Voltage 600VDC
Weight 1.6 lbs (0.72 kg)
Dimensions 44.6 x 11.3 x 0.1 in (1140 x 286 x 3 mm)



Controller Specifications



Nominal System Voltage 24/36/48VDC
Max Solar Array Current 12A
Max. Solar Voltage Input

Must be less than the battery voltage for charging protection up to 90V.

Max. Solar Voltage Input  400W



Max. Series Fuse or Circuit Breaker Rating  20A



Operating Consumption <6mA



Main Charge  28.8/44.2/57.6V (77°F, 25°C),30 min daily



Weight 26.8 oz (750g)



Dimensions 3.50 x 5.87 x 1.65 in (89 x 149 x 42 mm)



Warranty 5 years



Protection Battery Reverse Polarity, Solar Array Reverse
Polarity, Over temperature, Over Current, PV
Short Circuit, Battery Short Circuit, Over Current
