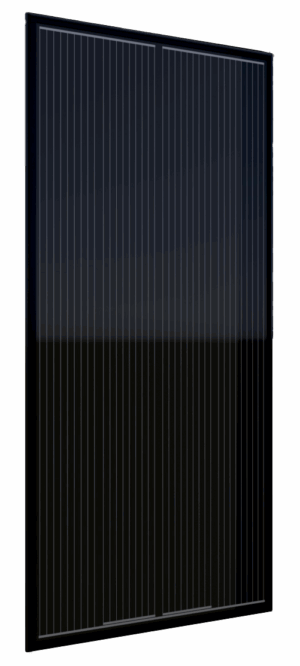

| Cell Type | Monocrystalline |
| Rated Power (Pm) | 110W |
| Maximum Power (Vmp) | 17.6V |
| Maximum Power Current (Imp) | 6.31A |
| Open Circuit Voltage (Voc) | 22.08V |
| Short Circuit Current (Isc) | 6.60A |
| Maximum System Voltage | 600VDC |
| Weight | 2.9 lb (1.35 kg) |
| Dimensions | 44.6 x 21.4 x 0.1 in (1134 x 544 x 3 mm) |
|
SPECIFICATIONS |
|
|
No-Load Loss |
<10mA |
|
Grounding |
Negative |
|
Operating Temperature |
-40 to 50°C |
|
Storage Temperature |
-60 to 85°C |
|
Humidity |
95% N.C. |
|
Water Ingress Protection |
IP68 |
|
Altitude |
< 3000m |
|
Standards Compliance |
UL 1741,FCC Part 15 Class B, CE, RoHS |
|
Protection |
Solar/Bat1/Bat2 Reverse Polarity Solar/Bat1/Bat2 Over Voltage Solar Short Circuit Over Temperature |
|
Dimensions |
14.4 x 7.6 x 4.13in (366 x 194 x 105mm) |
|
SOLAR INPUT |
|
|
Max Input Current |
30A |
|
MPPT Tracking Efficiency |
>99% |
|
Max Input Voltage |
150Voc |
|
Max Input Power |
600W (12V) / 1200W (24V) |
|
Wire Gauge |
8 AWG |
|
Connectors |
MC4 |
|
Conversion Efficiency |
≤98% |
|
BUCK-BOOST CONVERTER |
|
|
Conversion Efficiency |
12V/24V |
|
Input Voltage Range |
8V – 32V |
|
Max Input Power |
-3mv/°C/2V, none for Lithium batteries |
|
Max Charge Current |
30A |
|
Wire Gauge |
8 AWG |
|
External Input Connector |
2-way Aptiv Metri-Pack 630 Male Connector |
|
BATTERY OUTPUTS |
|
|
System Voltage |
12V/24V |
|
Voltage Range |
8V – 32V |
|
Temperature Compensation |
-3mv/°C/2V, none for Lithium batteries |
|
Max Output Current |
30A |
|
Supported Battery Types |
Lead Acid (AGM, Gel, Flooded), LiFePO4 |
|
Wire Gauge |
8 AWG |
|
Connectors |
2-way Aptiv Metri-Pack 630 Male Connector |
|
CHARGING PROFILE |
SEALED/GEL |
AGM |
FLOODED |
LIFEPO4 |
CUSTOM |
|
High Voltage Disconnect |
16.0 / 32.0 V |
16.0 / 32.0 V |
16.0 / 32.0 V |
14.6 / 29.2V |
8 – 32 V |
|
Equalize Voltage |
– |
– |
14.9 / 29.8V |
– |
8 – 32 V |
|
Bulk-Absorption Voltage |
14.1 / 28.2 V |
14.4 / 28.8 V |
14.4 / 28.8 V |
14.2 / 28.4 V |
8 – 32 V |
|
Float Voltage |
13.7 / 27.4 V |
13.7 / 27.4 V |
13.7 / 27.4 V |
14.0 / 28.0 V |
8 – 32 V |
|
Recharge Voltage |
13.2 / 26.4 V |
8 – 32 V |
|||
|
Over-Discharge Return Voltage |
12.8 / 25.2 V |
12.8 / 25.2 V |
12.8 / 25.2 V |
12.2 / 24.4 V |
8 – 32 V |
|
Under-Voltage Warning Level |
12.0 / 24.0 V |
8 – 32 V |
|||
|
Discharge Limit Voltage |
10.5 / 21.0 V |
8 – 32 V |
|||
|
Over-Discharge Time Delay |
10 seconds |
0 – 120 seconds |
|||
|
Equalize Duration |
– |
– |
120 minutes |
– |
0 – 600 minutes |
|
Absorption Duration |
120 minutes |
10 – 600 minutes |
|||
|
Equalize Interval |
– |
– |
30 days |
– |
0 – 250 days |
|
Temperature Compensation Factor |
-24 mV/°C |
– |
0 – 30 mV/°C |
||
No more idling to charge batteries; solar charges no matter if the truck is driving or parked. Intelligent charging system boosts the charging voltage to charge batteries more effectively for the liftgate and electric pallet jacks. Keep electric pallet jacks in your truck or trailer without the need to remove them to charge the batteries.
