| Cell Type | Monocrystalline |
| Rated Power (Pm) | 110 W |
| Maximum Power (Vmp) | 17.5V |
| Maximum Power Current (Imp) | 5.68A |
| Open Circuit Voltage (Voc) | 21.0V |
| Short Circuit Current (Isc) | 6.28A |
| Maximum System Voltage | 600VDC |
| Weight | 2.9 lbs (1.35 kg) |
| Dimensions | 44.6 x 21.4 x 0.1 in (1134 x 544 x 3 mm) |
|
Nominal System Voltage |
12V/24V |
|
Max Solar Array Current |
30A |
|
Battery Voltage Range |
9V – 15.5V (12V system), 18 – 31V (24V system) |
|
Max. Solar panel input voltage |
85V |
|
Operating Consumption |
<10 mA |
|
Temp. Compensation |
-25mV / K (12V systems), -50mV/K (24V Systems) |
|
Operating Temperature |
-40 to 60ºC (– 40 to 140°F) |
|
Humidity |
99% N.C. |
|
Dimensions (H x W x D): |
6in (152mm) x 5.1in (128mm) x 2in (43mm) |
|
Weight |
2.86 lbs (1297g) |
|
Warranty |
5 years |
|
Protection |
Reverse polarity protected, Temperature compensated RoHS compliant, environmentally safe |
+-Test 1
answer 1
+-Test 2
answer 2

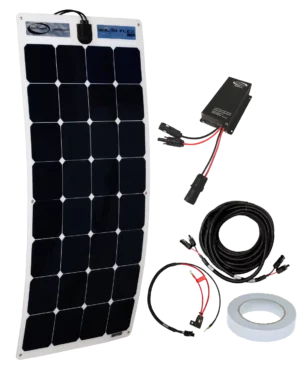

Pair your work or delivery truck with a 100-watt flexible solar kit to:
• Reduce idle time
• Extend battery life
• Eliminate service calls due to dead batteries
