OBSIDIAN® solar panels feature 9 bus bar solar cell technology, increasing the amount of solar energy collected. This exclusive low profile frame with thin junction box with MC4 connectors, and bypass diodes for shade resistance, and patented aerodynamic OBSIDIAN® frame to create the best in class solar solution for overland rigs, custom van builds, RVs, and other off-grid applications. Featuring an omni-rail mounting system, these panels are compatible with most roof racks.
| Specifications | |
|---|---|
| Rated Power (Pm) | 110 W |
| Maximum Power Voltage (Vmp) | 20.5 V |
| Maximum Power Current (Imp) | 5.1 A |
| Maximum Voltage | 300 VDC |
| Open Circuit Voltage (Voc) | 24.2 V |
| Short Circuit Current (Isc) | 5.4 A |
| Cell Type | Monocrystalline |
| Weight | 11 lb (5 kg) |
| Dimensions (in) | 42.6 × 21.6 × 0.6 in |
| Dimensions (mm) | 1083 × 550 × 17 mm |
| Materials |
Tempered, anti-reflective glass laminate; anodized aluminum frame |
| Warranty (Power Output) | 25 years |

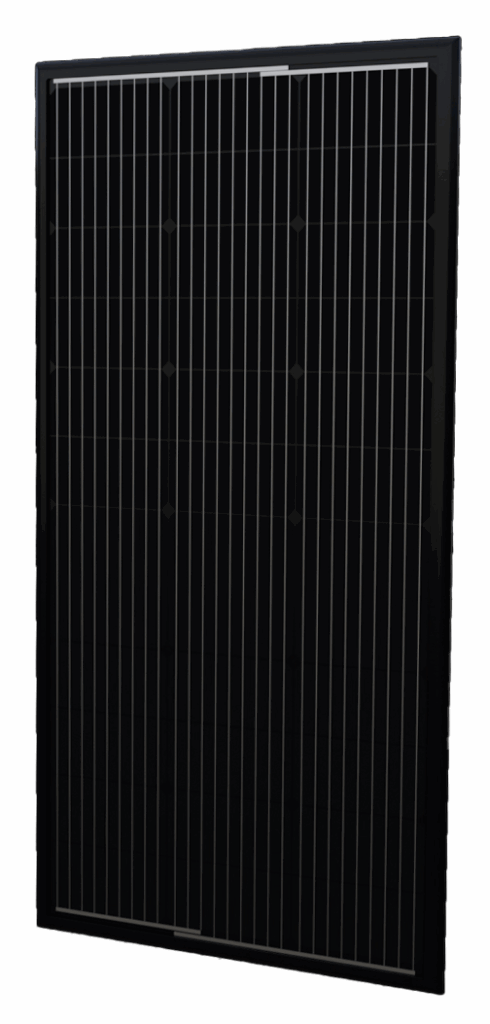

Low profile, aluminum framed solar module with omni-rail mounting system.
OBSIDIAN® solar panels feature 9 bus bar solar cell technology, increasing the amount of solar energy collected. This exclusive low profile frame with thin junction box with MC4 connectors, and bypass diodes for shade resistance, and patented aerodynamic OBSIDIAN® frame to create the best in class solar solution for overland rigs, custom van builds, RVs, and other off-grid applications. Featuring an omni-rail mounting system, these panels are compatible with most roof racks.
